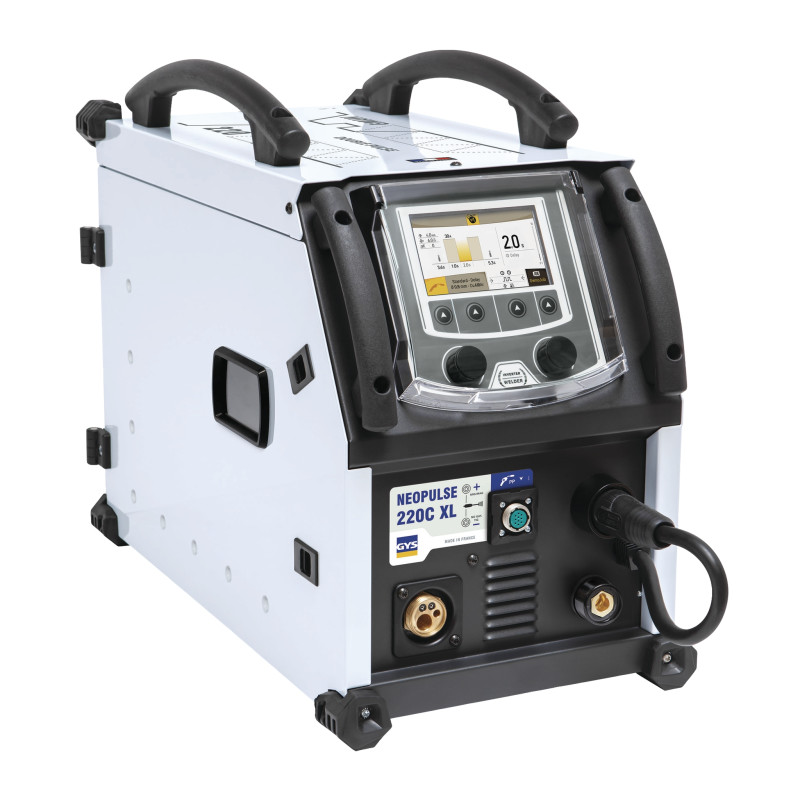

GYS - MIG-MAG Inverter Welder NEOPULSE 220 C XL without accessories

Compact three-phase generator for workshop and job sites
Welds steel, stainless steel and aluminium
MIG duty cycle: 170A at 60% / 130A at 100%
MMA duty cycle: 150A at 60% / 120A at 100%
Current range: 40 to 320A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless wire Ø 0.6 to 1.2mm and aluminium 0.8 to 1mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 6 mm) with Antisticking function
4-roller wire feeder for spool Ø 200 mm (5 kg) or Ø 300 mm (15kg)
Removable MAG torch 250A 3m with 2T/4T function
Digital interface and very intuitive adjustment
Compatible with 10kva generator
Three-phase power supply 400 V - 16 A
Dimensions: 65 x 52 x 34 cm - 38kg
IP23 rating for outdoor use

Delivered with:
1 x 360 A torch 4m MB36
1 x 400 Amp earth clamp 4m
1x User manual
2x 1.0/1.2 mm wire feed rollers

This multi-process machine allows welding of: MIG-MAG including flux-cored wire, MMA, and AC/DC TIG

It therefore allows aluminium welding in TIG mode, making it the only one in its category.

 Excellent performance in industrial MIG applications, flux-cored wire, MMA (including 6010 cellulosic electrodes), DC TIG and AC TIG.

- Advanced AC TIG features such as high-frequency arc starting, balance and offset adjustment, frequency adjustment up to 400 Hz and dual current. The DC TIG process also offers a pulsed mode up to 500 Hz.

- sMIG technology - The unique sMIG ("smart MIG") function allows the system to "learn" and constantly adapt to the operator's welding technique to deliver a stable arc and superior reproducible welds; it also increases the productivity of more experienced welders and reduces the training time of less experienced welders.

- Unmatched portability and robustness - Weighing 25.5 kg, the Rebel™ EMP 205ic AC/DC, with a 5-handle protection cage construction, can tackle any job in the workshop or on site.

- Multilingual TFT screen - feature-rich, the Rebel™ EMP 205ic AC/DC has 4 programmable memory slots for each process, language selection, inductance adjustment, pre/post gas flow adjustment and spot welding adjustment, allowing you to fine-tune your welds for optimal performance.

The welding machine is supplied with:

- 1 MIG torch type MXL 201, 3 m,

- TIG torch type SR-B 26 with accessories (1 electrode holder Ø 1.6-2.4-3.2 mm, + 1 diffuser 1.6-2.4-3.2 mm, + 1 long cap, 3 Gold tungsten electrodes of 1.6-2.4-3.2 mm), + 1 ceramic nozzle GR 6-7-8
- 1 cable length 3 m cross-section 25 mm² with electrode holder.
- 1 cable length 3 m cross-section 25 mm² with earth clamp.
- 4.5 m gas hose with quick connector,
- 2 reversible drive rolls for steel or stainless steel wire Ø 0.6/0.8 mm, and 0.8/1.0 mm (1 fitted on the machine)
- 2 contact tips 0.8 mm and 2 contact tips 1 mm

The POWERTEC® Lincoln i are new compact inverter-type power sources designed for MIG-MAG & MMA welding. They are available in two power outputs (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large color screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model shown below is the Powertec 250A Advanced

Intuitive adjustment by selecting the process and material thickness
Synergy curves, limits, memories
Display of useful information (ARCFX, welding defects...)
Multilingual navigation menu
Full support menu: technical data, accessories, instructions, safety
7'' color screen
USB connectivity: Simplified software updates and diagnostics thanks to built-in monitoring functions.

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and thickness to weld V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START-UP The machine is immediately ready to use thanks to the best settings already included
USB CONNECTIVITY Simplified software updates and diagnostics thanks to built-in monitoring functions.
PERFECT SUITABILITY
Optimized wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and consistent wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instantaneous and repeatable arc starting at will, immediate stabilization of the welding arc.
STABILITY Exceptional arc stabilization ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulation on welding equipment will soon come into force and will require a gradual phase-out of conventional equipment. The new POWERTEC® i family complies with this regulation by offering an energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Supplied with
Ground clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

Welds steel, stainless steel and aluminium for occasional use
MIG duty cycle: 160A@ 20%-40°C
MMA duty cycle: 140A@ 20%-40°C
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (solid wire Ø 0.6 to 0.8 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 mm)
- MMA (electrode Ø 1.6 to 2.5 mm) with Anti-sticking function
2-roller wire feeder for Ø 100 mm (1 kg) or Ø 200 mm (5 kg) spool
Removable 150A MAG torch 2.20 m
Digital interface and very intuitive adjustment
Compatible with 8kVA generator
Single-phase power supply 230 V - 16 A
Dimensions: 40 x 20 x 33 cm - 10 kg

Supplied with:
- 1 earth clamp + 16 mm² cable length 1.6 m
- 1 MIG/MAG torch length 2.20 m fitted with a contact tip for steel wire Ø 0.8 mm
- 1 reversible roller for solid wire Ø 0.8 and gasless 0.9 mm
- 1 electrode holder + 16 mm² cable length 1.6 m
- 1 no-gas nozzle + 1 contact tip for flux-cored wire Ø 0.9 mm
- 1 gas hose for refillable cylinder length 1 m
- 1 wrench to loosen contact tips

The POWERTEC® Lincoln i are new compact inverter-type generators for MIG-MAG & MMA welding. They are available in two power ratings (250A and 320A) and with two versions of human-machine interface: the STANDARD version with manual parameter adjustment and the ADVANCED version with a large colour screen, 25 pre-programmed synergic programs and numerous welding aids for the user.

The model presented below is the Powertec 320 A standard display.

Manual adjustment of voltage and wire feed speed
Quick button for selecting the welding process and shielding gas

Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

This unit features
INNOVATIVE INTUITIVE INTERFACE
Simple navigation even when wearing welding gloves. V Intuitive adjustment by selecting the process and the thickness to be welded V Display of useful information V Multilingual navigation menu
MORE FUNCTIONS
AUTO START The machine is immediately ready for use with the best settings already included
USB CONNECTIVITY Software updates and diagnostics made easier with built-in monitoring functions.
PERFECT PERFORMANCE
Optimised wire feeder position: stable arc, no vibration in the torch
4 drive rollers: smooth and jerk-free wire feeding
Developed and tested for work in the most demanding conditions (TRUE HD) to guarantee the reliability you need.
PREMIUM ARC PERFORMANCE
ARC STARTING Instantaneous and repeatable arc starting at will, immediate stabilisation of the welding arc.
STABILITY Exceptional arc stabilisation ensuring smooth metal transfer and reduced spatter.
ARC DYNAMICS Instant adjustment of welding parameters during variations in welding conditions.

READY FOR THE FUTURE
The new European regulations on welding equipment will soon come into force and will require a gradual phase-out of conventional equipment. The new POWERTEC® i family complies with these regulations by offering energy efficiency equal to or greater than 85% and a standby consumption below the new permitted limits.

Quick access to the most commonly used welding parameters (inductance, 2/4 stroke, Run-in, Burn-back)

Supplied with
Earth clamp and cable length 3 m.
Gas hose length 2 m
Reversible roller for steel/stainless steel wire Ø 1 and 1.2 mm
Trolley
Power cable length 5 m

Adaptive tool for the mobile welder
Excellent welding quality and precise arc ignition
High duty cycle: 190A@ 35% - 140A@60% - 100A @ 100%
Uses Ø 100 mm (1 kg) or Ø 200 mm (5 kg) spools
Generator compatible
3-metre torch
Lightweight and portable
LCD control panel
IP23 rating for outdoor use
Dimensions: 450x227x368mm - Weight 14.2kg
2-year warranty

Supplied with:

1 torch, length 3 m with ergonomic handle, fitted with a contact tip for steel or stainless steel wire Ø 0.8 mm
1 reversible roller for stainless steel or steel wire Ø 0.8/1 mm
1 ground clamp + cable section 16 mm², length 2.50 m
1 gas hose, length 5 m


This Inverter Synergic technology welding unit Lincoln Speedtec 320 CP allows you to weld using 2 processes: MMA-MIG-MAG.
This unit is perfectly suited for maintenance and repair work, metal construction (on-site or in the workshop) and the construction of aluminium structures.

It allows welding with rutile and basic electrodes (stainless steel - cast iron, etc.) from Ø 1.6 to 4 mm (electrode holder not included)

It operates on a 20 A - 400 V/3Ph domestic outlet
4-roller wire feed system

Its adjustment range is 20 to 200 A in MIG-MAG mode and 20 to 160 A in MMA mode
Easy polarity reversal to use flux-cored wire (gasless) of Ø 0.9 and 1.2 mm.

It is equipped with the following devices:

PFC (Power Factor Corrector) It can be used with a 100 m extension cord without any loss of power.
The power supply can be provided by a generator.

HOT START adjustable, which reduces the risk of sticking when the electrode and workpiece are cold, and also facilitates arc striking and penetration.

ARC FORCE adjustable, which maintains constant amperage regardless of arc length.

ANTI-STICKING reduces the risk of electrode sticking to the workpiece.

Key features:

The high duty cycle of this unit guarantees use without premature triggering of the thermal protection system.

This unit is delivered at the time of sale with:
1 x 5 m power cable
1 x 2 m gas hose
1 x 5 m ground cable
1 set of Ø 0.8 and 1 mm rollers for steel welding wire
1 x 300 mm wire adapter

This WELD 810 transport trolley by GYS can accommodate:
The welding machine
Gas cylinders up to 4m³
Remote control accessories
Dimensions: Height 81 cm - Length 70 cm - Width 50 cm
Dimensions of the upper shelf: 35 x 55 cm
Trolley sold bare

Multi-process Synergic Inverter welding machine with an adjustment range of 10 to 240 A enabling the following welding processes:

1) Semi-automatic (welding wire) MIG-MAG, supports the use of steel, stainless steel, aluminium, brazing wire (special for automotive sheet metal) with the appropriate gas, and flux-cored wire for welding steel without gas.
The PULSE process guarantees high execution speed, excellent penetration and cleanliness, as well as welding in all positions.
This process is particularly recommended for welding thin aluminium and stainless steel.
Wire driven by a motor with 4 drive rolls.

The ROOT-MIG process makes it easier to weld sheet metal edge-to-edge, even with wide gaps (also in TIG welding mode).

2) Basic and rutile electrode rods from Ø 1.6 to 6 mm. (electrode holder optional)

3) Lift TIG start for welding steel, stainless steel and ferrous alloys. (TIG torch optional).
The ATC process is highly effective when welding thin materials (0.5 - 0.8 mm), as it reduces metal distortion caused by heat build-up.

The price includes in addition to the machine:

1 MIG/MAG torch 250A with a length of 3 m fitted with a 0.8 mm contact tip.
1 reversible drive roll for steel wire 0.6 / 0.8 mm (mounted on the machine).
1 earth clamp and cable

The ESAB Rogue EMP 210 PRO is a multi-process INVERTER technology welding machine designed to meet all your welding project needs, from light fabrication to repair and maintenance.
The system offers industrial-level arc performance and comprehensive controls that allow the welder to fine-tune arc characteristics to suit the material being welded.
Weighing only 16.7 kg, with a 230 V single-phase power supply and compatibility with 10 kVA generators, this system offers maximum flexibility and portability, both in the workshop and in the field.
True multi-process unit with Synergic MIG, Manual MIG, MIG brazing, flux-cored, Lift TIG and MMA (including 6010) processes
The 5.0" TFT screen is intuitive and clear, allowing the welder easy adjustment and a quick learning curve.
Synergic welding programs: complete range of welding parameters, 0.5 to 10.0 mm with a single control knob
Power Factor Correction (PFC): ensures a stable arc, resistant to mains voltage fluctuations, even when working with long extension cords up to 100 m
Unique robust industrial design: multiple handles for easy handling and cable management
Arc dynamics: precise adjustment of arc characteristics for a crisp / stable arc for carbon steel or a fluid / soft arc for stainless steel
Jobs: ability to save / recall up to 10 operations
Compliant with IP23S standard for indoor / outdoor use

Applications
Automotive construction
Automotive bodywork
Agricultural equipment
Civil engineering
Mechanical contractors
Repair and maintenance
Light fabrication

Package contents:
1 Multi-process welding machine 210 A with 3 m power cable and 16 A plug
1 MIG torch MXL 201, 3 m with Euro connector, with 1 contact tip for steel or stainless steel wire Ø 0.8 mm
1 Ground clamp with 3 m cable, OKC 35-50 16 mm2.
1 Electrode holder, Handy 200 A, heavy-duty 50 mm OKC, with 3 m cable.
1 Gas hose 4.5 m with quick connector.
1 Ø 200 mm spool of ESAB OK AristoRod steel wire 0.8 mm, weight 1 kg
1 Feed roller 0.6 / 0.8 mm (fitted on the machine) + 1 roller 0.8 / 1 mm for steel or stainless steel wire.
1 roller 0.8 / 0.9 mm for flux-cored wire
1 roller 1 / 1.2 mm for aluminum wire
1 nozzle for flux-cored wire (gasless) + 1 contact tip Ø 0.8 mm and 1 contact tip Ø 0.9 mm
1 user manual and safety instructions.

Compact three-phase generator for workshop and job sites
Welds steel, stainless steel and aluminium
MIG duty cycle: 170A at 60% / 130A at 100%
MMA duty cycle: 150A at 60% / 120A at 100%
Amperage range: 40 to 250A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (steel/stainless wire Ø 0.6 to 1.2mm and Alu 0.9 to 1.2mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 5 mm) with Anti-stick function
4-roll wire feeder for Ø 200 mm (5 kg) or Ø 300 mm (15kg) spool
Removable 250A 3m MAG torch with 2T/4T function
Digital interface and very intuitive adjustment
Compatible with 10kva generator
Three-phase power supply 400 V - 16 A
Dimensions: 58 x 52x 32 cm - 32kg
IP23 rating for outdoor use

Delivered with:
1 x 250 A 3m MB25 torch
1 x 4m ground clamp
1x User manual
2x rollers 0.8/1.0

This tri-technology unit allows you, with a single machine, to weld in MMA, semi-automatic (MIG-MAG) and TIG modes.

MMA (electrode) and TIG welding solutions are available as options.

As standard, this semi-automatic unit features 17 programmed settings. The user simply needs to select the type of metal and the wire diameter. It is also possible to weld in manual mode by directly adjusting the settings parameters.

This welding unit uses wire on a spool. This welding process allows welding of thin materials (0.6 mm).

Very practical on thin sheets (automotive bodywork, chassis...), it avoids the weld bead restart that occurs when changing an electrode.

With the addition of a shielding gas, this unit enables welding on aluminium, stainless steel and steels in MIG-MAG and MMA mode, and steel, stainless steel and ferrous alloys in TIG mode.

Using a suitable wire of the CU Si3 type, it enables welding of HSS, EHS, UHS steels (automotive bodywork)

MIG welding with gas shielding requires the use of pure Argon gas for aluminium welding or an Argon + CO² mixture for steels and stainless steels.

Special case: For steel, it is possible to weld without gas when using flux-cored wire (which allows, for example, easier outdoor use). In this case, the thickness of the steel sheets must not be less than 1 mm to avoid the risk of burn-through.

This unit uses Ø 200 mm and 300 mm wire spools (flux-cored wire in 2 kg and other wires in 5 and 15 kg). An adapter for Ø 100 mm spools is available as an option.

Upon delivery, this unit includes:
1 Mig 180 A torch (3 metres)
1 earth clamp + 1.9 m cable.
1 roller for steel/stainless steel wire Ø 0.6 and 0.8 mm.
1 steel/stainless steel contact tip Ø 0.8 mm
1 gas hose for refillable cylinder

TIG welding with gas shielding requires the use of pure Argon gas for welding steels, stainless steels, ferrous alloys and copper...

As an option:

It is possible to add an electrode holder with a 3 m cable in order to weld with electrodes from Ø 1.6 mm to 4 mm.

Reference KIT000514

It is possible to add a TIG torch 4 m in length in order to weld in TIG mode using pure Argon shielding gas.

For connecting the unit to gas, it is recommended to use the 804208 fitting.

Ideal for locksmiths and maintenance workshops
Welds steel, stainless steel and aluminum
MIG duty cycle: 400A at 60% / 240A at 100%
MMA duty cycle: 400A at 60% / 240A at 100%
Amperage range: 40 to 400A
Combines 3 welding processes in 1 unit:
- MIG/MAG with gas (steel/stainless wire Ø 0.6/0.8 to 1.6 mm and Alu 0.8 to 1.6 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.9 to 1.2 mm)
- MMA (basic and rutile electrode up to 6 mm) +
4 drive rolls for Ø 200 mm spool (5 kg) or Ø 300 mm (15 kg)
Removable MAG torch 250A (2T/4T) 3 m (8 mm contact tip)
Digital interface with very intuitive adjustment
Compatible with 10 kVA generator
Gas cylinder support for cylinders up to 4 m³
Three-phase power supply 400 V - 16 A
Dimensions: 77 x 79 x 47 cm - 48 kg
IP21 rating

Supplied with:
1x MIG 36 torch - 4 meters
1x 400A ground clamp - 4 meters (35/50 mm connector)
1x User manual
2x drive rolls 1.0/1.2 mm

This Lincoln Speedtec 200C Inverter Synergic technology unit allows you to weld using 3 processes: MMA, MIG-MAG and TIG

It allows welding with rutile and basic electrodes (stainless steel – cast iron, etc.) of Ø 1.6 to 4 mm (electrode holder not included)

It is also possible to add a TIG welding torch as an option. In TIG mode, this unit cannot weld aluminium.

It operates on a standard 16 A – 230 V household outlet.

Its adjustment range is 20 to 200 A in MIG-MAG mode and 20 to 160 A in MMA or TIG mode
Easy polarity reversal to use flux-cored wire (gasless) of Ø 0.9 and 1.2 mm.

It features the following devices:

PFC (power factor corrector) It can be used with a 100 m extension cord without any loss of power.
The power supply can be provided from a generator.

HOT START adjustable, reduces the risk of sticking when the electrode and workpiece are cold, also facilitates arc striking and penetration.

ARC FORCE adjustable, maintaining constant amperage regardless of arc length.

ANTI-STICKING reduces the risk of the electrode sticking to the workpiece.

Its advantages:

The high duty cycle of this unit guarantees operation without premature triggering of the thermal protection system.

This unit is delivered with the sale with:
1 x 2 m power cable
1 x 2 m gas hose
1 x 3 m ground cable
1 set of Ø 0.8 and 1 mm drive rollers for steel welding wire


Multi-process welding machine for professionals
Welds steel, stainless steel and aluminum up to 3mm thick
MIG duty cycle: 110A@ 60%-40°C
MMA duty cycle: 100A@ 60%-40°C
Current range: 20 to 150A
Combines 3 welding processes in 1 product:
- MIG/MAG with gas (solid wire Ø 0.6 to 0.8 mm)
- MIG/MAG without gas (flux-cored wire Ø 0.6 to 0.9 mm)
- MMA (electrode Ø 1.6 to 3.2 mm) with Anti-Sticking function
4-roll wire feeder for Ø 200 mm (5 kg) or Ø 300 mm (15 kg) spools
Removable MAG torch 150A 3m
Digital interface with very intuitive adjustment
Compatible with 8kVA generator
Single-phase power supply 230 V - 16 A
Dimensions: 53 x 28 x 45 cm - 16.5 kg

Delivered with:
1x 150A 3m torch
1x 2m 16mm² earth clamp
1x 2m 16mm² electrode holder
1 gas hose 1m + 2 hose clamps
1 contact tip wrench
1 contact tip 0.9 + nozzle for gasless wire

Multi-process machine allowing MMA - MIG - TIG welding.

Multi-process MIG-MAG/FLUX/BRAZING/MMA and TIG DC-Lift inverter welding machine controlled by microprocessor.
The WAVE OS system makes welding operations: customisable according to user requirements; traceable and analysable, thanks to data recording on USB; simplified, thanks to synergic parameter adjustment and the presence of specific programs for materials to be welded.
Features:
- 55 customisable programs,
- continuous and pulsed operation,
- user-friendly interface with colour TFT screen,
- Wave OS operating system with pulsed welding programs for specific materials (AB Pulse for aluminium and galvanised sheet metal) and low heat input for thin thicknesses (ATC).
Supplied with 250 A torch length 3 m duty cycle 200 A@60%, and earth clamp + cable 3 m
