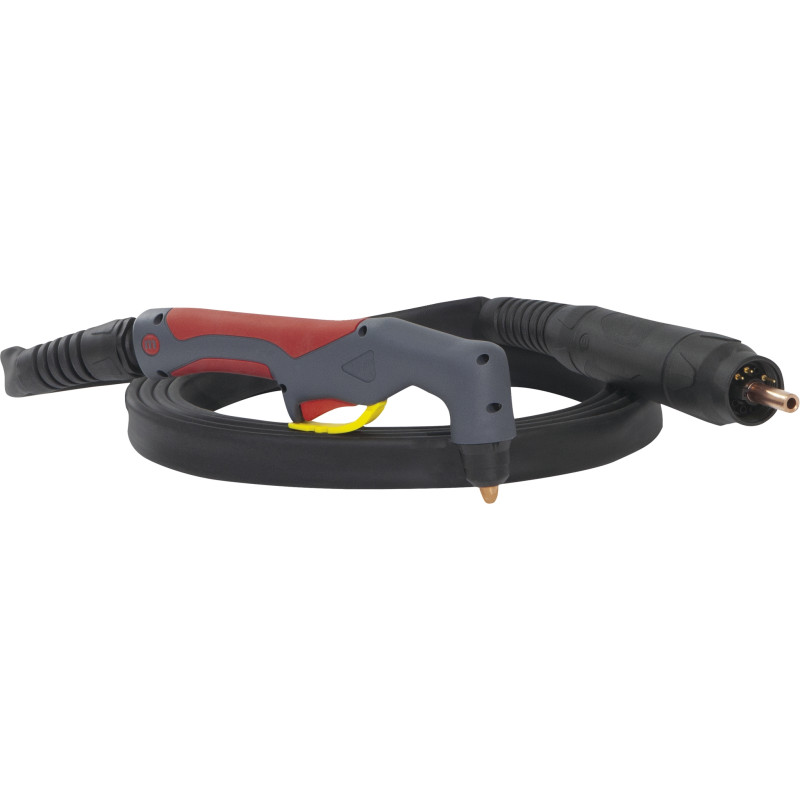

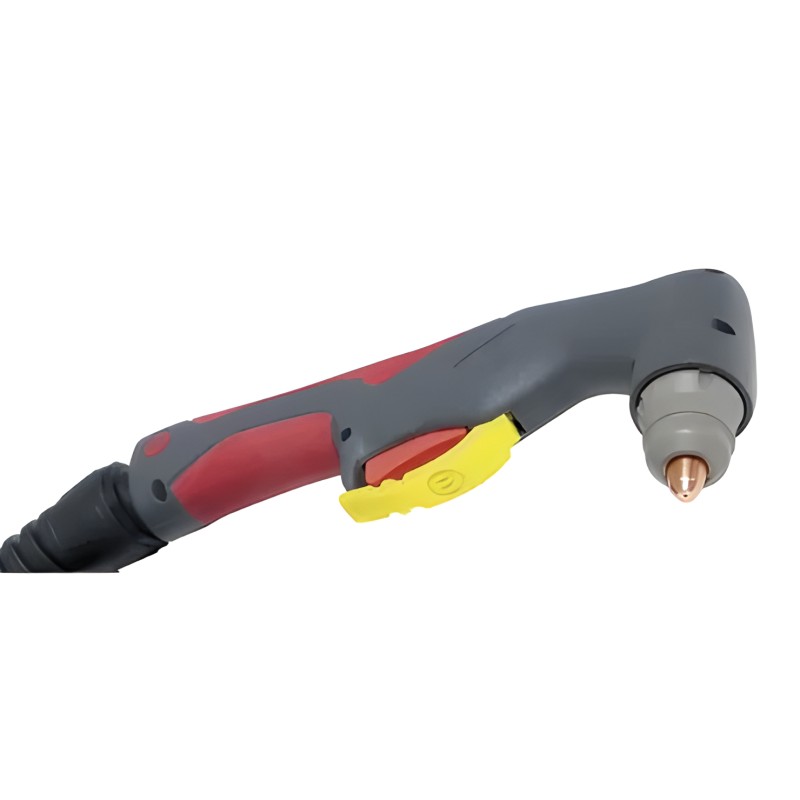

This TPT 40 plasma torch is compatible with GYS cutting machines: CUTTER 30 FV - EASYCUT 40 - CUTTER 45CT
Length: 4 m
Ignition voltage: 500V maximum
Maximum rated current: 40 A
Duty cycle at 40°: 40 A@60%
Torch cooling: Air
Recommended pressure/flow rate: 5 bar - 100 l/min
Switch characteristics: (trigger) 0.6A / 125V DC - 0.3A / 250V DC
165,83 € tax excl.
This TPT 40 plasma torch is compatible with GYS cutting machines: CUTTER 30 FV - EASYCUT 40 - CUTTER 45CT
Length: 4 m
Ignition voltage: 500V maximum
Maximum rated current: 40 A
Duty cycle at 40°: 40 A@60%
Torch cooling: Air
Recommended pressure/flow rate: 5 bar - 100 l/min
Switch characteristics: (trigger) 0.6A / 125V DC - 0.3A / 250V DC
Description
Important
The torch must be fitted with the correct consumables, chosen according to the application and the set current. A poor choice of consumable will cause cutting defects, premature wear of consumables and potentially a malfunction of the entire unit. The torch is delivered with a pot of silicone grease to limit seal wear and seizing of metal parts. It is recommended to apply this grease regularly.
Regularly check the wear condition of the protection nozzle, the tip and the electrode, or in the event of a significant reduction in cutting speed. It is recommended to replace the tip and electrode at the same time.
Consumables are wear parts; it is important to know when to replace them. Visually: melted or damaged consumables, nozzle holes>1.5mm, worn electrodes, melted pads… Practically: loss of cutting performance, difficult arc starting on the workpiece, etc.
Regarding the nozzle: Tighten the nozzle so that all parts are firmly locked. The nozzle should not turn easily.
Use compressed air with oil and water filtration.
