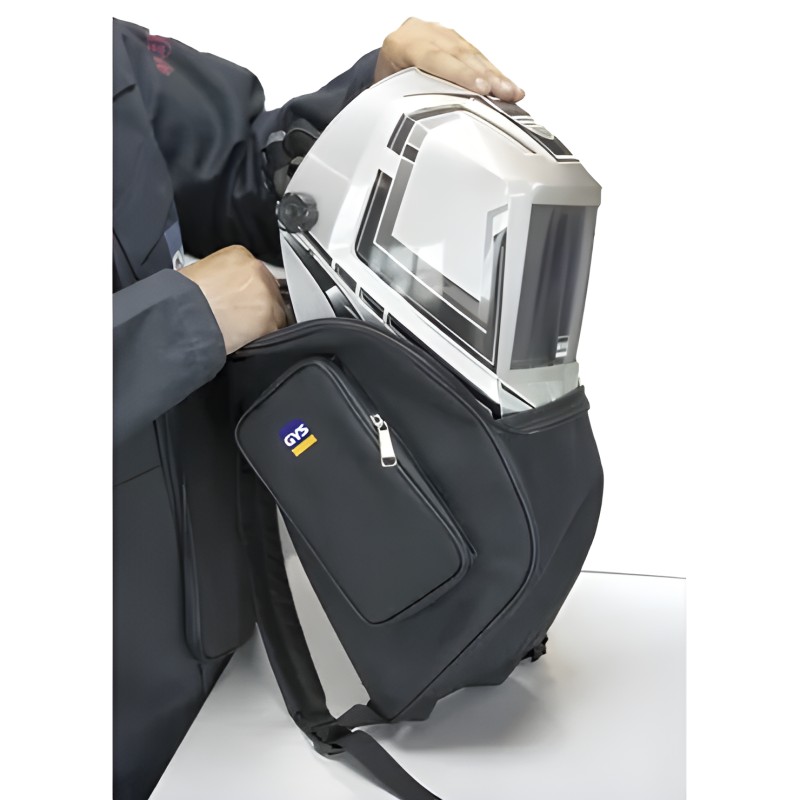

Transport and protection backpack for welding helmet

LCD WELDING MASK

Essential for safety, the GYSMATIC TRUE COLOR XXL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the tinted state in a fraction of a second, from the moment the arc is struck. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 - True Color Technology
Classification: 1/1/1/1
Viewing area: 100 x 83 mm
Reaction time: 0.10 ms
Settings: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 680 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:

Outer lens 114 x 133 mm (reference 043893)
Inner lens 106 x 89.5 mm (reference 046825)

The Savage A50 LUX welding helmet adopts the proven performance of the Sentinel A60 welding helmet to deliver True-Color OpTCS rendering at an impeccable EN 1/1/1/1 optical level.
The optoelectronic cell features a simple and intuitive control panel that allows the most critical functions related to all welding types to be controlled: wide shade selection; 5 delay and sensitivity levels.
To complete the versatility of the Savage A50 LUX, a dual 50-lumen LED light is integrated behind the protective lens. The light is powered by its own "AA" battery for a long service life thanks to the integrated arc sensor, which only turns off the lamp when an arc or intense light is detected.
The 5-point adjustable Halo headband of the Savage A50 LUX is the same as the one on the Sentinel A60.

Advanced LED lighting with dedicated arc sensor and
power supply
Easily accessible LED work light power button and separate external grinding button
Optoelectronic cell viewing area: 100 x 60 mm with internally adjustable push-button controls
Shade range: DIN 3/5 – 13
ESAB True-Color OpTCS visor technology
Arc sensors: 4
Fast switching time of 0.07 milliseconds
Replaceable CR2450 battery
Low battery and grinding mode LED indicators

Welding processes
- Oxyfuel cutting
- Plasma cutting
- Grinding
- Welding, GMAW (MIG/MAG)
- Welding, GTAW (TIG)
- Welding, PAW (Plasma welding)
- Welding, SMAW/MMA (coated electrode)

The delivery includes: a complete helmet, 2 replacement inner lenses, 4 replacement outer protective lenses, a carrying bag and a safety
manual.

The GYSMATIC 9/13 AIR TRUE COLOR XL is a welding mask equipped with a powered air purifying respiratory protection system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's airways.

• The XL lens provides an optimal field of view.
• True Color technology ensuring incredible colour accuracy during welding.
• The 5 available shades (9> 13) adapt to all welding operations. It allows TIG welding from as low as 5 A.
• The 4 solar sensors ensure very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to needs (from 170 l/min to 230 l/min).
• The lithium battery provides up to 8 hours of battery life.
• The TH2PRSL rated filter retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter.

Consumables:
- Pre-filter (ref. 038417)
- TH2 filter (ref. 038424)
- TH3 filter (ref. 065734)

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

SACIT PANTERA welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), TIG welding>6 A, flame welding and grinding work.
The Pantera mask is particularly ideal for low-amperage TIG welding (GTAW) and is able to guarantee maximum performance even in the most extreme welding situations.
Large throat and neck protection

Automatically switches to a dark shade in 1/0.08000 of a second.

Sensitivity and intensity adjustment using the buttons located inside the helmet.

Also suitable for eye protection during grinding operations thanks to the "Grinding" position.

Adjustable sensitivity. Protection level DIN 9-13 for MMA-MIG/MAG/TIG welding operations.
Suitable for flame welding thanks to its dual adjustment range DIN 5-8

This helmet features the TRUE COLOR system for more accurate color reproduction, reducing eye fatigue for the welder, as well as the Stand-by/Sleep-Mode system: the filter switches off when brightness is below 1 uA and activates when light intensity exceeds 10 lux.

Operates with a CR2450 battery (included) + solar battery.

Viewing area 100 x 60 mm
Filter dimension: 114 x 133 mm
Optical class 1/1/1/1
Adjustment ranges 4/ 9:13
Number of sensors: 4
Adjustable headband
Weight 590 g
2-year warranty.

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Clear shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 hard hat adapter
1 headband adjustable in width and length.
Storage bag
2 CR2032 batteries
1 spare outer cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

This Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for maximum clarity
Weight 600 g
Temperature resistance: Welding helmet 220° and cover lens up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit all head shapes.
Storage bag
Micro USB charging cable
Cover lens
Warranty card.

PAPR connection equipment

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic Vision 11 TC welding helmet True-Color technology Matte black colour, easy to clean Fixed light shade: DIN 3 Fixed dark shade: DIN 11 Wide field of view: 90x35mm Solar power + Lithium battery Number of sensors: 2 Automatically switches from light to dark shade on arc strike Ultra fast: 0.6 milliseconds Return to light state from 0.2S to 0.8S UV protection: DIN16 Optical class 1/1/1/2 Weight 420 grams

Application fields: MMA 10-150 / TIG 10-175 / MIG-MAG 10-200 Standards: EN 175 / EN 379

High-performance automatic welding helmet. Sentinel A60 was designed with enhanced vision in mind.
Viewing area 40% larger than A50 (118 x 71 mm) for a wider view of your work.
Its new ADF offers excellent 1/1/1/1 EN optics from all angles
Ultra-clear True-Color lenses to reduce eye fatigue
Shade range from 3/5 to 13 adjustable in half-unit digital increments to optimise vision
4 overactive arc detection sensors for automatic brightness recognition in any work environment
Bright two-colour LED display for easy viewing in low-light conditions
New graphics to adjust sensitivity and delay time
Buttons carefully spaced apart from each other, easy to use even with gloves
ADF with nine programmable memory slots to save and quickly access welding profiles
Esab Sentinel A60 features an external grinding mode button for easy activation
New shade lock function to bypass the ADF and keep the helmet in its darkest state.
2 replaceable CR2450 lithium batteries with solar support
Internal warning indicators for grinding mode, low battery and ADF bypass lock
The signature flip-front design of the Sentinel A60 with infinite adjustment distributes weight
around the head.
Switching time (light to dark): 0.04 ms; switching time (dark to light): 0.1–0.9 s, adjustable

Approvals: CE: EN175, EN379, EN166; ANSI Z87.1; CSA Z94.3; AS/NZS 1337.1, 1338.1; TP TC 019/2011; ISO 16321-1/2

3-year warranty (battery excluded)

DELIVERED COMPLETE WITH 2 AMBER REPLACEMENT EXTERNAL PROTECTION LENSES, 2 CLEAR EXTERNAL PROTECTION LENSES, 2 INTERNAL PROTECTION LENSES AND A PRACTICAL PROTECTIVE CARRY BAG.

The Lincoln Viking 3350 series welding helmets are the premium quality helmets from this manufacturer.

The 4C process gives these helmets the highest protection rating of 1/1/1/1 and a clearer view by minimising the traditional green tint.
A clearer view is a factor in reducing eye fatigue and therefore provides additional comfort for the welder, while also offering increased visibility of the weld pool for higher quality welding.

This welding helmet is available in 3 finishes and comes with a 3-year warranty.

It features 4 sensors, a large 133 x 144 mm screen, an internal shade adjustment from 5 to 13, and a grinding mode.
Supplied with a CR2450 battery and a carrying case.

Possible welding processes / MMA - TIG and pulsed TIG - MIG and pulsed MIG - flux-cored wire as well as gouging and grinding operations.

This sweatband is compatible with GYS welding helmets featuring the following headband models:
- Multifit
- Ergofit
- Multi
- Simple

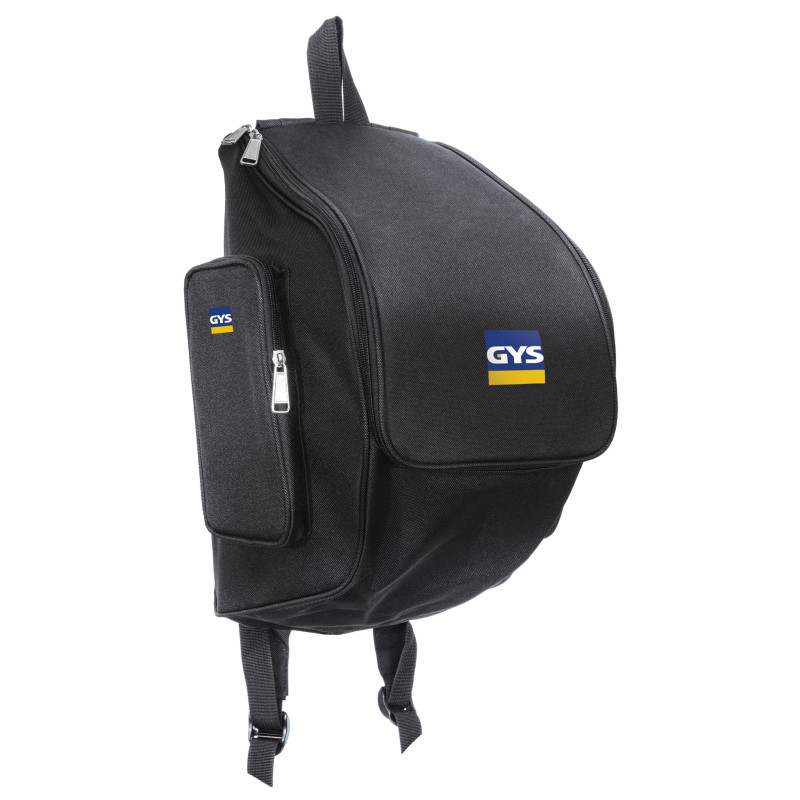

This bag provides protection during transport or when your welding helmet is not in use.

Variable shade adjustable from 8 to 13 depending on your eye sensitivity - Adjustment inside the mask.
Optical class: 1/1/1/1
Viewing area 97 x 60 mm
Grinding mode function DIN 3 - adjustment button on the outside of the helmet
Number of sensors: 4
Dark / light switching time: 0.1-1.0 second - fully adjustable
Weight 560 g
Possibility of adaptable magnifying lens
Minimum trigger amperage: less than 2 A in DC and AC/DC
Headband type: 4-axis pivot
Battery type: 2 x CR2050 + solar cell
True colour rendering device

replacement lenses:

internal: KP2931-1

external: KP2898-1
