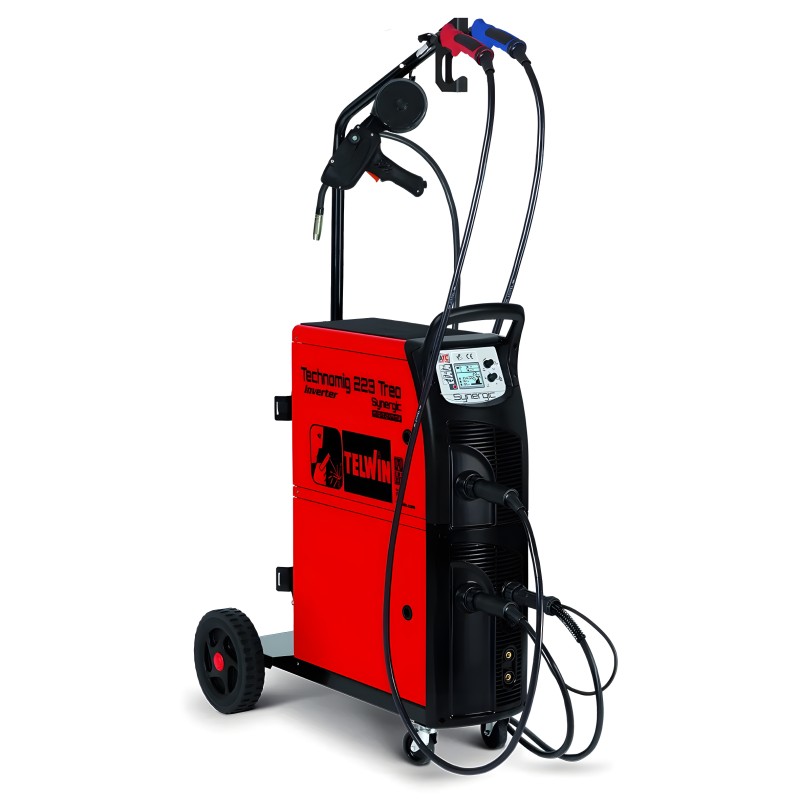

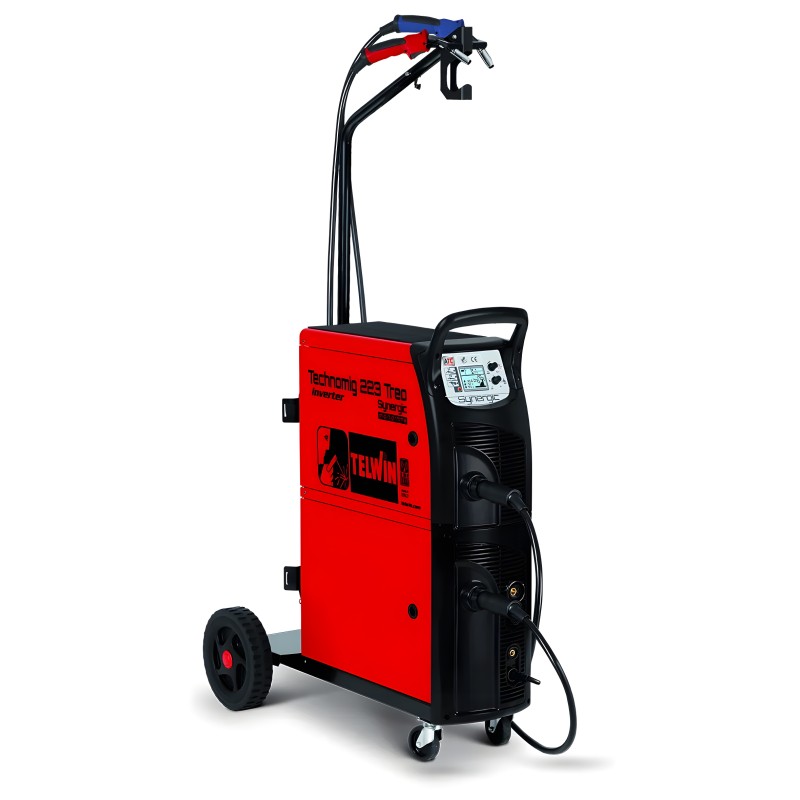

MIG-MAG welder Technomig 223 TREO TELWIN
  • MIG-MAG welder Technomig 223 TREO TELWIN
  • MIG-MAG welder Technomig 223 TREO TELWIN

TECHNOMIG 223 TREO SYNERGIC 230V TELWIN WELDING MACHINE


Inverter multiprocess welding machine MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift controlled by microprocessor.
Particularly designed for bodywork applications, it allows immediate use of three different torches, two traditional MIG torches and one spool gun.

This feature enables direct intervention on different materials without needing to replace the torch and wire spool.
The traditional MIG torches are designed for welding steel, high-strength HLE steels, as well as stainless steel and braze-welding of galvanised sheets; the spool gun torch is specifically designed for aluminium even at a significant distance from the generator.

The SYNERGIC quick adjustment of welding parameters, thanks to ONE TOUCH LCD SYNERGY technology, makes the product very easy to use.
ATC technology, Made in Telwin, makes it easy to achieve excellent welds on thin thicknesses thanks to advanced arc control. It is also possible to intervene manually on arc length: this adjustment allows the shape of the weld bead to be modified according to the welder's style.

The ONE TOUCH LCD graphic display enables better reading of all welding parameters.

Characteristics:
- 17 pre-set synergic curves
- LCD screen display of welding parameters
- 2/4 stroke, spot operation selection
- Thermostatic, overvoltage, undervoltage, overcurrent, motor-generator protections (+/- 15%).

Supplied with:

1x Cable with earth clamp (3 metres) 16 mm² - 10/25 connectors
1x MIG torch MB15 STEEL (3 metres) Euro connector
1x MIG torch MB15 ALU (3 metres) - Euro connector
1x SPOOL GUN torch M6
1x Gas hose
1 Set of 2 drive rolls for steel or stainless wire Ø 0.6 / 0.8 mm (mounted on the machine).
User manual

2-YEAR WARRANTY

Reference: 816284

TELWIN - TECHNOMIG 223 TREO | MIG MAG Welding Machine

Telwin
favorite_border favorite
€2,874.79

2 415,79 € tax excl.

Out of stock
A question about this product? Characteristics Accessories

TECHNOMIG 223 TREO SYNERGIC 230V TELWIN WELDING MACHINE


Inverter multiprocess welding machine MIG-MAG/FLUX/BRAZING/MMA/TIG DC-Lift controlled by microprocessor.
Particularly designed for bodywork applications, it allows immediate use of three different torches, two traditional MIG torches and one spool gun.

This feature enables direct intervention on different materials without needing to replace the torch and wire spool.
The traditional MIG torches are designed for welding steel, high-strength HLE steels, as well as stainless steel and braze-welding of galvanised sheets; the spool gun torch is specifically designed for aluminium even at a significant distance from the generator.

The SYNERGIC quick adjustment of welding parameters, thanks to ONE TOUCH LCD SYNERGY technology, makes the product very easy to use.
ATC technology, Made in Telwin, makes it easy to achieve excellent welds on thin thicknesses thanks to advanced arc control. It is also possible to intervene manually on arc length: this adjustment allows the shape of the weld bead to be modified according to the welder's style.

The ONE TOUCH LCD graphic display enables better reading of all welding parameters.

Characteristics:
- 17 pre-set synergic curves
- LCD screen display of welding parameters
- 2/4 stroke, spot operation selection
- Thermostatic, overvoltage, undervoltage, overcurrent, motor-generator protections (+/- 15%).

Supplied with:

1x Cable with earth clamp (3 metres) 16 mm² - 10/25 connectors
1x MIG torch MB15 STEEL (3 metres) Euro connector
1x MIG torch MB15 ALU (3 metres) - Euro connector
1x SPOOL GUN torch M6
1x Gas hose
1 Set of 2 drive rolls for steel or stainless wire Ø 0.6 / 0.8 mm (mounted on the machine).
User manual

2-YEAR WARRANTY

-20%

Buy a welding machine and get 20% off all consumables on the site

Out of stock

100% secure payment in 2, 3, 4 or 10 instalments by credit card or PayPal
Secure payment methods
Expert after-sales service
Authorised Euro Welding dealer
A question about this product?

Characteristics of TELWIN - TECHNOMIG 223 TREO | MIG MAG Welding Machine

Supply voltage (in Volts) 50 / 60 Hz - 230 Volts Fuse (in Amperes) 16 - 32 A
MIG welding adjustment range (in Amperes) 20 - 220 A MIG-MAG duty cycle at 40°C 180 A @20 % - 105 A@60 % -75 A@100 %
Installation power (in KW) 2 - 5 Open circuit voltage (in Volts) 78
Possible electrode type Rutile - basic Usable rutile electrode diameter (Ø) for the unit (in mm) From 1.6 to 4 mm
Ø basic electrode usable by the unit (in mm) 2 to 4 mm Usable Tungsten electrode diameter (Ø) 1 to 3.2 mm
Nature of materials to be TIG welded steel, stainless steel, copper, cast iron, titanium, nickel Welding positions 17
Uses steel wire diameter 0.6 to 1 mm Uses stainless steel wire diameter 0.8 - 1 mm
Uses aluminum wire diameter 0.8 to 1 mm Uses flux-cored wire (gasless) diameter 0.8 mm - 0.9 mm - 1.2 mm
Uses CuSi3 - CuAL (Brazing) wire diameter 0.8 - 1 mm Ventilated Yes
Overvoltage thermostatic protection Yes +/- 15 % Nature of materials to be MMA welded Steel - Stainless steel - Cast iron
Generator compatible yes +/- 15% voltage variation Welding process MMA - MIG - TIG
Warranty 2 years Dimensions (in mm) 870 X 530 X 1665
Weight in kg 55 Number of drive rolls 4 rollers
Suggested generator power 10 kW - 12 kVA Usage Professional
Uses spools of diameter Ø200 and 300mm Synergy Yes
