Key features of the Telwin Technology 186XT welder:
Ideal for demanding situations and harsh environments
Designed to withstand impacts: anti-shock protection and metal handle
Duty cycle for intensive use (20°C): 160A @35%
Welds rutile, basic, stainless steel and cast iron electrodes from Ø 1.6 to 4 mm
Two welding processes: MMA / Lift TIG
Generator compatible
Compact and powerful: 5–160A single-phase (230V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Supplied in a carry case
Made in Italy
2-year warranty

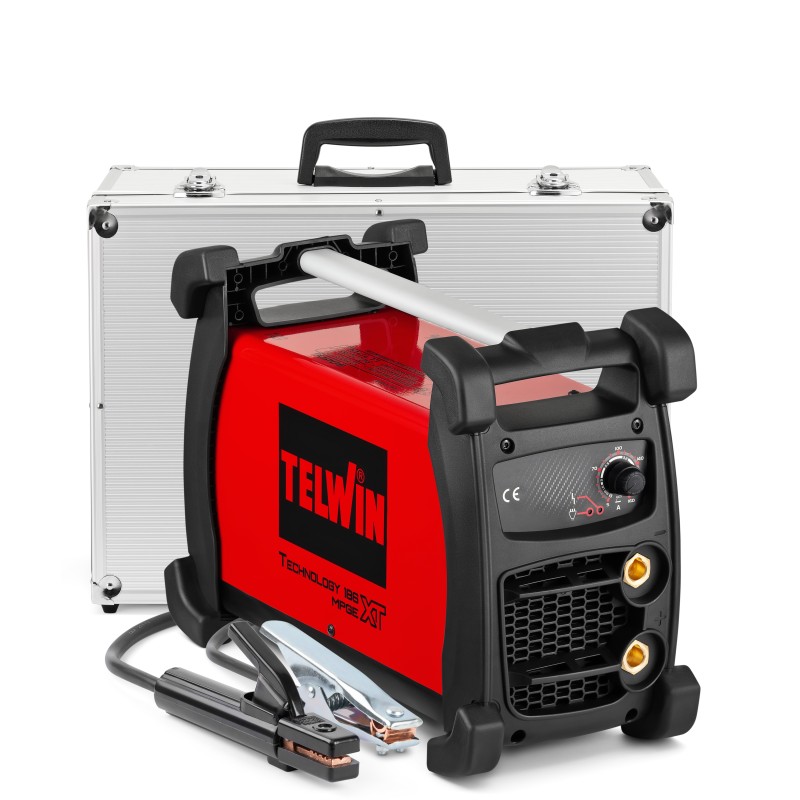

This unit is supplied in a carry case and includes:

1 electrode holder + cable (length 3m, cross-section 25 mm²) Ø 50
1 ground clamp + cable (length 2m, cross-section 25 mm²) Ø 50
1 power cable with plug, length 2m

Save with this promotion

PACK: Telwin MMA 186 XT MPGE welding machine + Helmet + gloves + Apron

PACK: Telwin MMA 186 XT MPGE welding machine + Helmet + gloves + Apron

€594.93 €644.93 -8% Click here
Reference: 816250

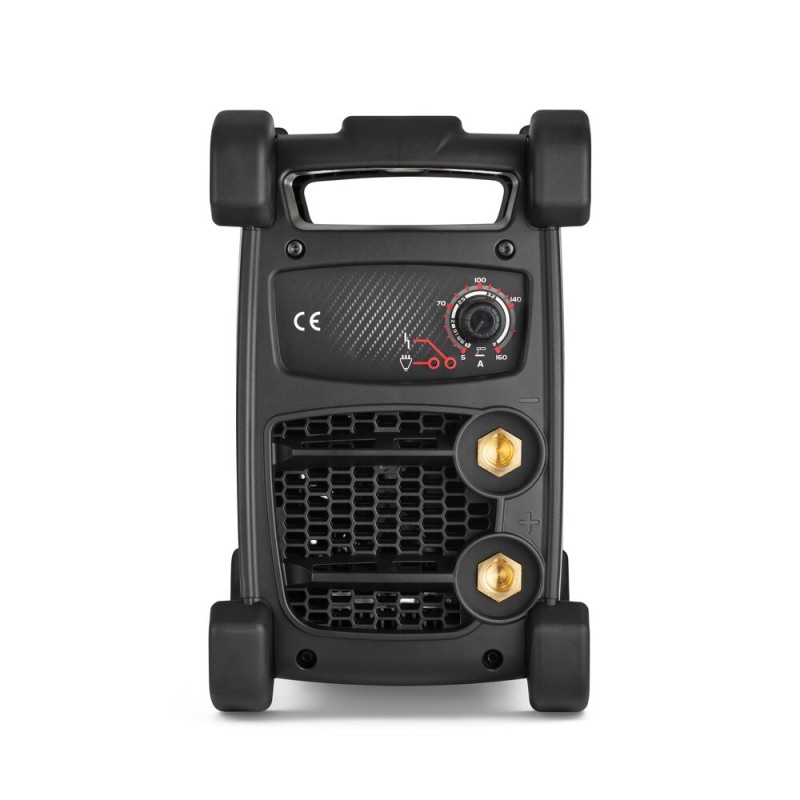

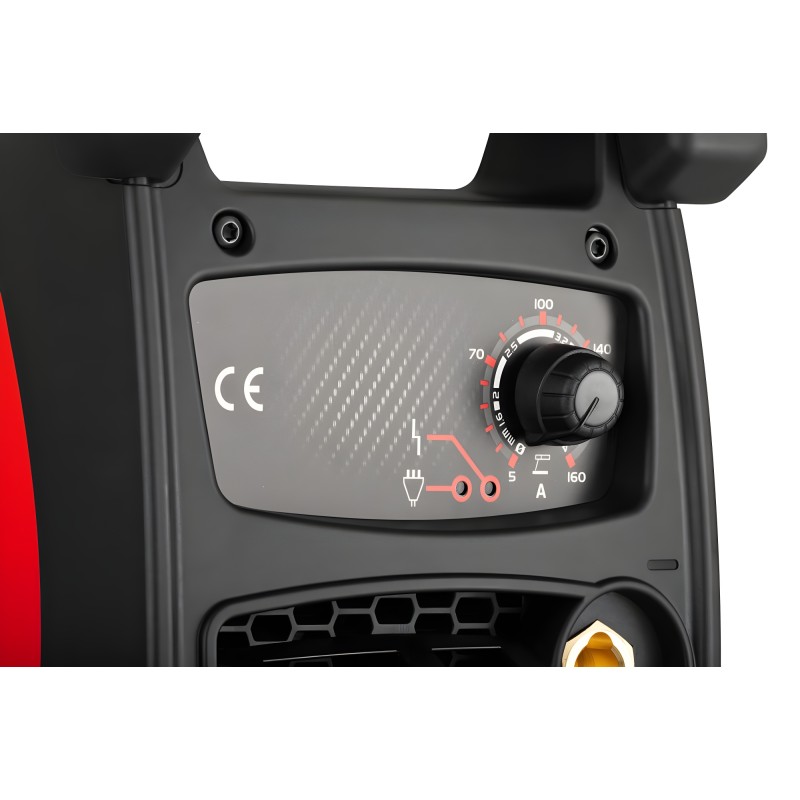

TELWIN - TECHNOLOGY 186 XT MPGE | MMA inverter welder

Telwin
(2 reviews)
By purchasing this product you will earn 7.82 € thanks to our loyalty program. Your cart will total 7.82 €.
favorite_border favorite

Based on 2 reviews

See the reviews
€465.09

390,83 € tax excl.

In stock
Shipping within 24h
Delivery in 24-48h
A question about this product? Characteristics Accessories Description Demonstration video The technical data sheet The manual

Key features of the Telwin Technology 186XT welder:
Ideal for demanding situations and harsh environments
Designed to withstand impacts: anti-shock protection and metal handle
Duty cycle for intensive use (20°C): 160A @35%
Welds rutile, basic, stainless steel and cast iron electrodes from Ø 1.6 to 4 mm
Two welding processes: MMA / Lift TIG
Generator compatible
Compact and powerful: 5–160A single-phase (230V)
Technologies: Inverter, MPGE, Arc Force, Hot Start, Anti Stick
Supplied in a carry case
Made in Italy
2-year warranty

This unit is supplied in a carry case and includes:

1 electrode holder + cable (length 3m, cross-section 25 mm²) Ø 50
1 ground clamp + cable (length 2m, cross-section 25 mm²) Ø 50
1 power cable with plug, length 2m

This product is Euro Welding's choice This product is Euro Welding's choice
This welder has many advantages! - Its duty cycle of 160A@35% will allow everyone to weld without the thermal circuit breaker tripping unexpectedly. - The electrode holder cable length is 3 m, allowing easy handling. - Delivered in a sturdy aluminum case. - European manufacture

-20%

Buy a welding machine and get 20% off all consumables on the site

By purchasing this product you will earn 7.82 € thanks to our loyalty program. Your cart will total 7.82 €.
Last items in stock

100% secure payment in 2, 3, 4 or 10 instalments by credit card or PayPal
Secure payment methods
Expert after-sales service
Authorised Euro Welding dealer
A question about this product?

Description

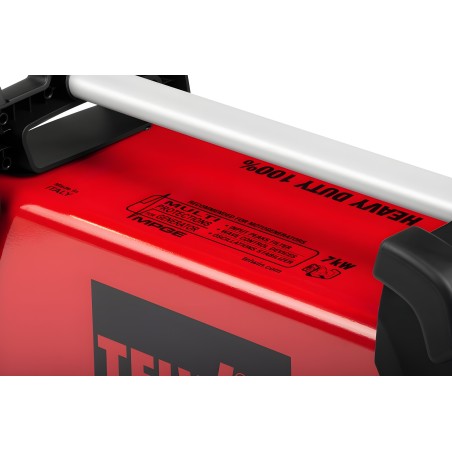

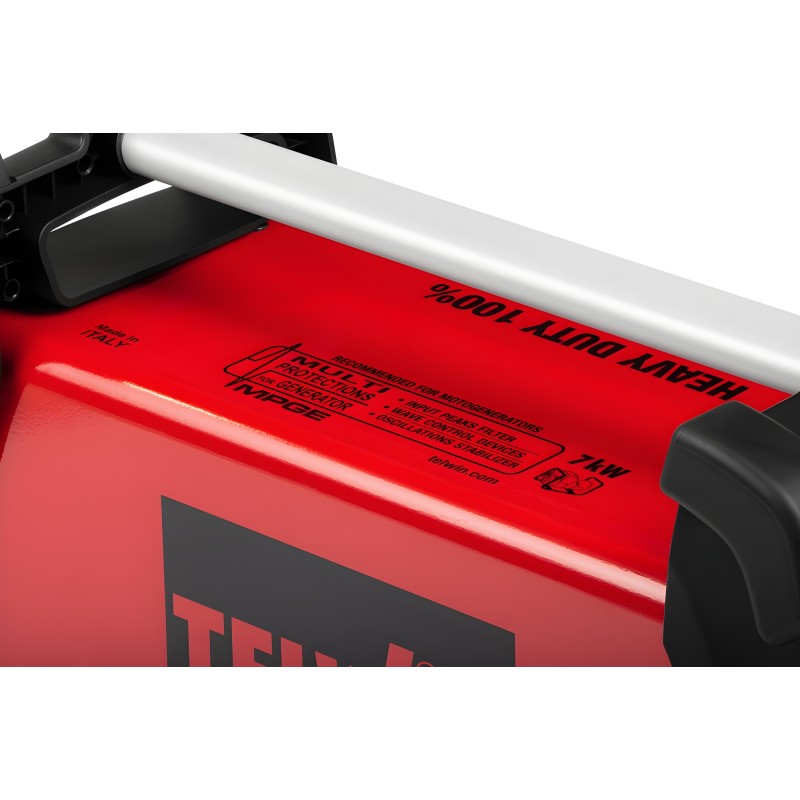

Thanks to the MPGE system it is equipped with, this unit is particularly suited for operation from a generator. Indeed, this process guarantees good stability in the event of supply voltage variations.

With the TIG function (torch optional), it allows welding of thinner materials (0.5 mm). Materials weldable in TIG mode are: steel, stainless steel, copper, brass. Please note, it does not allow welding of aluminium.

Characteristics of TELWIN - TECHNOLOGY 186 XT MPGE | MMA inverter welder

Supply voltage (in Volts) 50 / 60 Hz - 230 Volts Fuse (in Amperes) 16 / 20 A
MMA power range (in Amperes) 5 - 160 A Duty cycle at 40°C MMA 160 A@35% - 120 A@60% 100 A@100%
TIG 40° DC duty cycle 160 A@35% - 120 A@60% 100 A@100% Open circuit voltage (in Volts) 60 V
Possible electrode type Rutile - basic Usable rutile electrode diameter (Ø) for the unit (in mm) From 1.6 to 4 mm
Ø basic electrode usable by the unit (in mm) 2 to 4 mm Usable Tungsten electrode diameter (Ø) 1 to 2.4 mm
Nature of materials to be TIG welded steel, stainless steel, copper, cast iron, titanium, nickel Ventilated Yes
Overvoltage thermostatic protection Yes +/- 15 % Nature of materials to be MMA welded Steel - Stainless steel - Cast iron
Generator compatible Yes Welding process MMA / TIG CONTACT
Warranty 2 years Dimensions (in mm) 500 X 375 X 220
Weight in kg 6,5 Protection rating IP23
Suggested generator power 10 kVA Usage Professional
Professional
TIG ignition type TIG Lift Product for rental 1
Delivered in a carry case Yes Max MMA Power 160 A Max
