Product highlights:
Welding power of 200 A in direct current
The single-phase 230/110V generator delivers up to 8.2 kW
Honda 11.1 HP petrol engine, durable and reliable
Compatible with Rutile, Basic and Cellulosic electrodes up to 5.0 mm
Robust and designed for outdoor environments (IP23)
Compliant with RoHS, CE and Stage V standards
2 263,34 € tax excl.
Product highlights:
Welding power of 200 A in direct current
The single-phase 230/110V generator delivers up to 8.2 kW
Honda 11.1 HP petrol engine, durable and reliable
Compatible with Rutile, Basic and Cellulosic electrodes up to 5.0 mm
Robust and designed for outdoor environments (IP23)
Compliant with RoHS, CE and Stage V standards
Description

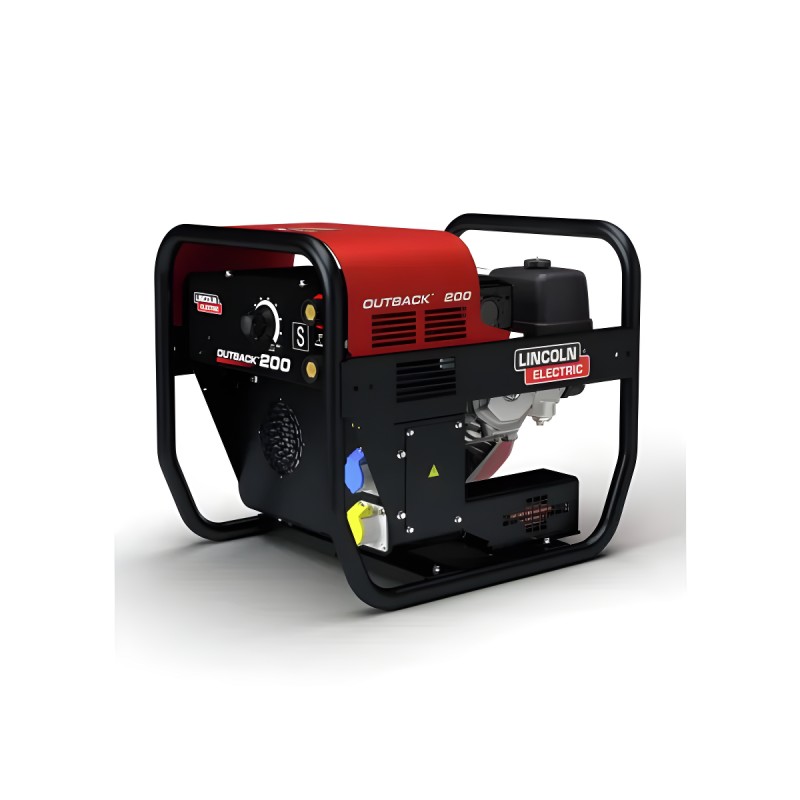

The Lincoln Outback 200 is ideal for repair work on civil engineering and agricultural machinery, or pipeline laying. Essential for outdoor work.
It provides DC current for stick (coated electrode) welding and AC current for auxiliary equipment!
PORTABLE and VERSATILE
- Welding current up to 200A
- Total electrical power of 8.1kW; the generator can supply up to 4.6kW for welding and 3.5kW as auxiliary power
- A petrol engine powered by a DC current source for stick welding and an AC generator 230/110V.
The combustion engine drives a generator that provides DC current for welding and single-phase AC current for portable power tools
- Welding with coated electrodes up to 5mm diameter maximum or welding applications up to 170A
RELIABLE
- Field-proven robustness and reliability
- Designed for demanding working conditions (IP23)
- Equipped with an 11.1 HP Honda engine with a proven track record in industry
ENHANCED SAFETY
- Meets the latest European compliance standards for exhaust emissions: RoHS, CE, and Stage V
- Low noise level < 97 dB
Tank capacities: 6.1 litres for fuel and 1.1 litres for oil
Optional additional equipment: Wheel kit and handling arm kit
Delivered without earth clamp or electrode holder
Characteristics of LINCOLN - Autonomous welding unit OUTBACK 200
| MMA power range (in Amperes) | 10 - 170 A | Duty cycle at 40°C MMA | 170 A@60% - 150 A@100% |
| Open circuit voltage (in Volts) | 70 | Possible electrode type | Rutile - basic - cellulosic |
| Usable rutile electrode diameter (Ø) for the unit (in mm) | From 1.6 to 5 mm | Nature of materials to be MMA welded | Steel - Stainless steel - Cast iron |
| Warranty | 2 years | Dimensions (in mm) | 540 X 490 X 630 |
| Weight in kg | 70 |
Expert advice for professionals and individuals
Benefit from the support of specialists, whatever your profile.
Secure payment
Your transactions are protected by the latest security technologies.
Express delivery in 24/48 h
Fast dispatch to France, Europe and overseas territories upon confirmation of your order.
Best price guaranteed
Enjoy the most competitive prices on the market all year round.
Supplier stock
TOTAL
Reference: 41459
€946.05
795,00 € tax excl.
or 4 x 236,51 €
Free delivery
2-year warranty

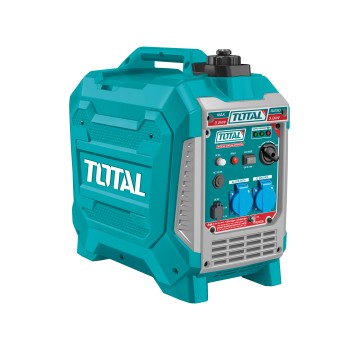

SOUNDPROOFED petrol GENERATOR with inverter technology. Nominal voltage 220-240 V. Frequency 50 Hz. Maximum output 3.3 kW. Rated output 3.0 kW. Noise level (7m) 50% load>=64 dB. 250 V and 16 A power outlet. 12 V and 8 A outlet. Two USB outputs. Dry weight 25 kg. Single-cylinder 4-stroke overhead valve engine.
Supplier stock
TOTAL
Reference: 41466
€4,391.10
3 690,00 € tax excl.
Free delivery
2-year warranty

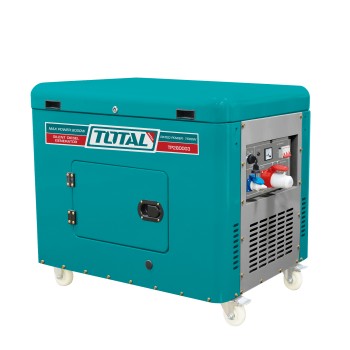

SOUNDPROOFED three-phase diesel GENERATOR. Nominal voltage 220-240 V / 380-415 V. Frequency 50 Hz. Maximum output 8.0 kW 380-415 V. Rated output 7.5 kW 380-415 V. Maximum output 2.6 kW 220-240 V. Rated output 2.5 kW 220-240 V. 13.0 HP diesel engine. Rated speed 3000 rpm. Displacement 668 ml. Air cooling system. Copper coil alternator. 25 L fuel tank. Dry weight 236 kg. Maintenance-free 36 Ah battery.
Supplier stock
TOTAL
Reference: 41460
€1,844.50
1 550,00 € tax excl.
or 4 x 461,13 €
Free delivery
2-year warranty

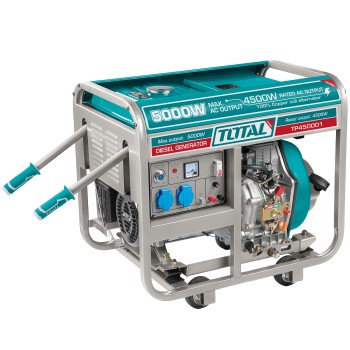

OPEN single-phase diesel GENERATOR. Nominal voltage 220-240 V. Frequency 50 Hz. Maximum output 5.0 kW. Rated output 4.5 kW. 9.0 HP diesel engine. Rated speed 3000 rpm. Displacement 418 ml. Air cooling system. Copper coil alternator. 16-litre fuel tank. Dry weight 102 kg. With a set of auxiliary handles and wheels.
Supplier stock
TOTAL
Reference: 41463
€2,082.50
1 750,00 € tax excl.
or 4 x 520,63 €
Free delivery
2-year warranty

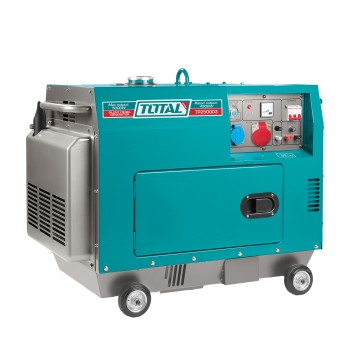

SOUNDPROOFED three-phase diesel GENERATOR. Nominal voltage 220-240 V / 380-400 V. Frequency 50 Hz. Maximum output 5.0 kW 380-400 V. Rated output 4.5 kW 380-400 V. Maximum output 1.6 kW 220-240 V. Rated output 1.5 kW 220-240 V. 9.0 HP diesel engine. Rated speed 3000 rpm. Displacement 418 ml. Air cooling system. Copper coil alternator. 17 L fuel tank. Dry weight 172 kg. Maintenance-free 30 Ah battery.
Supplier stock
TOTAL
Reference: 41470
€4,629.10
3 890,00 € tax excl.
Free delivery
2-year warranty
Soundproofed three-phase diesel GENERATOR with ATS system. Nominal voltage 220-240 V / 380-415 V. Frequency 50 Hz. Maximum power 8.0 kW 380-415 V. Nominal power 7.5 kW 380-415 V. Maximum power 2.6 kW 220-240 V. Nominal power 2.5 kW 220-240 V. Diesel engine 13.0 HP. Nominal speed 3000 rpm. Displacement 668 ml. Air cooling system. Copper coil alternator. 25 L fuel tank. Dry weight 236 kg. 36 Ah maintenance-free battery.
Supplier stock
TOTAL
Reference: 41464
€2,439.50
2 050,00 € tax excl.
or 4 x 609,88 €
Free delivery
2-year warranty

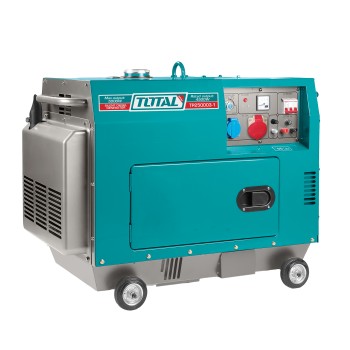

SOUNDPROOFED three-phase diesel GENERATOR with ATS system. Nominal voltage 220-240 V / 380-400 V. Frequency 50 Hz. Maximum output 5.0 kW 380-400 V. Rated output 4.5 kW 380-400 V. Maximum output 1.6 kW 220-240 V. Rated output 1.5 kW 220-240 V. 9.0 HP diesel engine. Rated speed 3000 rpm. Displacement 418 ml. Air cooling system. Copper coil alternator. 17 L fuel tank. Dry weight 172 kg. Maintenance-free 30 Ah battery.
Lincoln Electric
Reference: K14296-1
€284.81
€356.01
239,34 € tax excl.
or 3 x 94,94 €
Free delivery
2-year warranty
This kit includes a handle set, a wheel set and all accessories needed to attach to the Outback 200 welding generator.
Supplier stock
TOTAL
Reference: 41458
€725.90
610,00 € tax excl.
or 4 x 181,48 €
Free delivery
2-year warranty

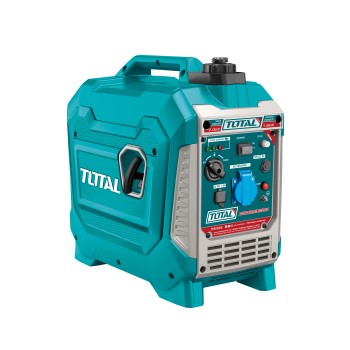

SOUNDPROOFED petrol GENERATOR with inverter technology. Nominal voltage 220-240 V. Frequency 50 Hz. Maximum output 2.0 kW. Rated output 1.8 kW. Noise level (7m) 50% load>=64 dB. 250 V and 16 A power outlet. 12 V and 8 A outlet. Two USB outputs. Dry weight 17.5 kg. Single-cylinder 4-stroke overhead valve engine.
Supplier stock
TOTAL
Reference: 41462
€1,963.50
1 650,00 € tax excl.
or 4 x 490,88 €
Free delivery
2-year warranty

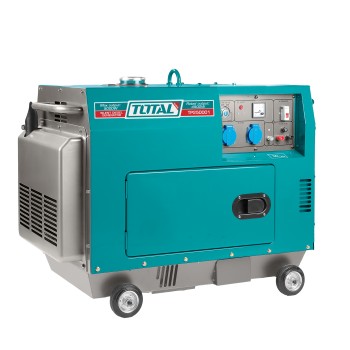

SOUNDPROOFED single-phase diesel GENERATOR. Nominal voltage 220-240 V. Frequency 50 Hz. Maximum output 5.0 kW. Rated output 4.5 kW. 9.0 HP diesel engine. Rated speed 3000 rpm. Displacement 418 ml. Air cooling system. Electric start system. 15 L fuel tank. Dry weight 148 kg. Maintenance-free 30 Ah battery.
Supplier stock
TOTAL
Reference: 41465
€4,159.05
3 495,00 € tax excl.
Free delivery
2-year warranty

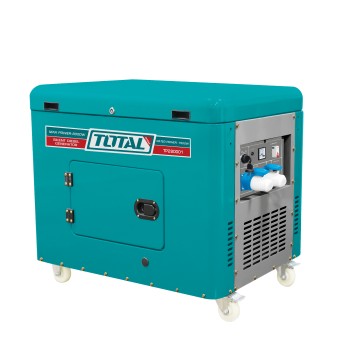

SOUNDPROOFED single-phase diesel GENERATOR. Nominal voltage 220-240 V. Frequency 50 Hz. Maximum output 8.0 kW. Rated output 7.5 kW. 13.0 HP diesel engine. Rated speed 3000 rpm. Displacement 668 ml. Air cooling system. Electric start system. 25-litre fuel tank. Dry weight 236 kg. Maintenance-free 36 Ah battery.
Supplier stock
TOTAL
Reference: 41461
€1,892.10
1 590,00 € tax excl.
or 4 x 473,03 €
Free delivery
2-year warranty

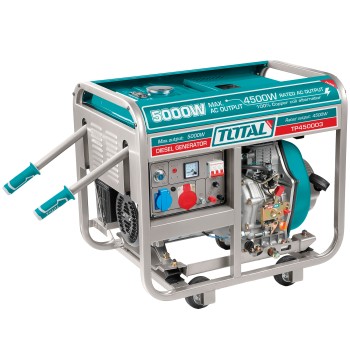

OPEN three-phase diesel GENERATOR. Nominal voltage 220-240 V / 380-415 V. Frequency 50 Hz. Maximum output 5.0 kW 380-415 V. Rated output 4.5 kW 380-415 V. Maximum output 1.6 kW 220-240 V. Rated output 1.5 kW 220-240 V. 9.0 HP diesel engine. Rated speed 3000 rpm. Displacement 418 ml. Air cooling system. Copper coil alternator. 16-litre fuel tank. Dry weight 102 kg. With a set of auxiliary handles and wheels.
