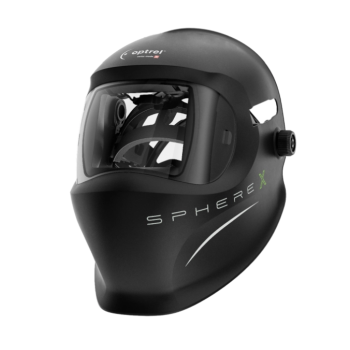

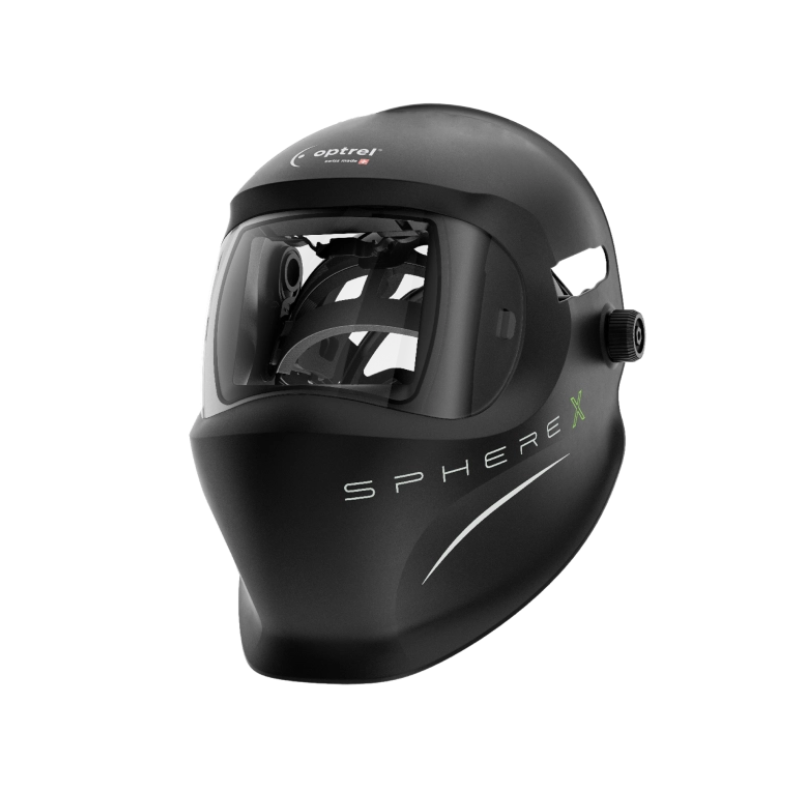

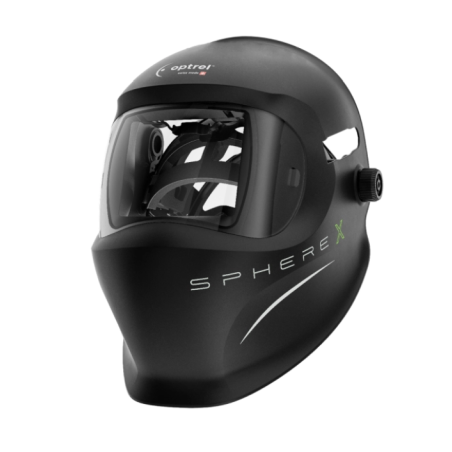

sphereX shell - black: without optoelectronic filter

SACTI P850 welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), grinding, and flame welding.

Automatically switches to a dark shade in 1/3,000 of a second.
It features the TRUE-COLOR system for a more true-to-life color vision and reduced eye strain.

Operates with a CR2032 battery (included) + solar cell.

Intensity adjustment via external button.

All Sacit® auto-darkening masks are powered by batteries and integrated solar cells, ensuring reliable operation even in non-uniform or dark environments. The use of batteries also allows for faster darkening compared to masks powered solely by solar cells.

Viewing area: 39 x 96 mm
Filter dimensions: 110 x 90 mm
Adjustable sensitivity. Protection level DIN 4/9:13 during welding operations.
Number of sensors: 2.
Adjustable headband
Optical class: 1/1/1/2
Weight: 485 g

Download the brochure

Essential for safety, the ALIEN XXL+ TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the darkened state in a fraction of a second, right from arc ignition. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 – True Color technology
Classification: 1/1/1/1
Viewing area: 100 x 90 mm
Reaction time: 0.08 ms
Adjustments: sensitivity, shade, delay
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement protective lenses:
Outer lens 114 x 133 mm ref. 043893
Inner lens 104 x 96 mm ref. 043596

Automatic welding helmet
Fixed light shade: DIN 4
Variable dark shade: DIN 9-13
Viewing field: 930x430 mm
Solar power + Lithium battery (CR2032)
Grinding function
Adjustable headband
Automatically switches from light to dark shade upon arc strike: under 1/10,000 seconds
Return to light state adjustable from 0.15S-0.8S
Dimensions: 57x50x52 cm
Weight: 430 grams

Optical classification standard:
Compliant with standards EN 175B / EN 166 / EN 379

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Clear shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 hard hat adapter
1 headband adjustable in width and length.
Storage bag
2 CR2032 batteries
1 spare outer cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

Welding helmet suitable for arc welding:

MMA (stick electrode) from 5 to 400 A
MIG-MAG (semi-automatic welding) from 5 to 400 A
TIG from 5 to 300 A

Adjustable shade: DIN 5 to 13; setting 5 to 8 for flame welding and 9 to 13 for arc welding.
Solar powered + 2 CR2450 batteries
Automatically switches from light shade to dark shade upon arc strike in 0.2 ms
Weight: 560 grams.

Viewing field 100 x 67 mm
Number of sensors: 4
Adjustable headband
Grinding position (Grind): the lens remains clear during grinding and cutting work.

Optical classification: 1/1/1/2
Compliant with standards EN 175 / EN 379

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic Panoramic welding helmet
XL viewing area: 100x80mm + Fixed shade 5
Construction: PP
True Color technology
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 2 replaceable CR2450 batteries
Low battery alarm and test button
Number of sensors: 4
Automatically switches from light to dark shade upon arc striking in 0.08 milliseconds
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/2/1/2
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

CLT Technology - Exceptional brightness (shade 2.0)
Extended field of view +30%
Realistic color vision
Color: black
Light shade: 2.0
Auto shades 5-12
Manual shades: 8-12, 4-8
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Power supply: Solar panels + 2 CR2032 batteries (replaceable)
EN379 classification: 1-1-1-2
Weight: 640g

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

SACIT PANTERA welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), TIG welding>6 A, flame welding and grinding work.
The Pantera mask is particularly ideal for low-amperage TIG welding (GTAW) and is able to guarantee maximum performance even in the most extreme welding situations.
Large throat and neck protection

Automatically switches to a dark shade in 1/0.08000 of a second.

Sensitivity and intensity adjustment using the buttons located inside the helmet.

Also suitable for eye protection during grinding operations thanks to the "Grinding" position.

Adjustable sensitivity. Protection level DIN 9-13 for MMA-MIG/MAG/TIG welding operations.
Suitable for flame welding thanks to its dual adjustment range DIN 5-8

This helmet features the TRUE COLOR system for more accurate color reproduction, reducing eye fatigue for the welder, as well as the Stand-by/Sleep-Mode system: the filter switches off when brightness is below 1 uA and activates when light intensity exceeds 10 lux.

Operates with a CR2450 battery (included) + solar battery.

Viewing area 100 x 60 mm
Filter dimension: 114 x 133 mm
Optical class 1/1/1/1
Adjustment ranges 4/ 9:13
Number of sensors: 4
Adjustable headband
Weight 590 g
2-year warranty.

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

The Optrel Panoramaxx Quattro welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 350 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-13
Light shade: 3 for grinding work.
Weight: 575 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

SPACEVIEW 3/5-13G AZUR TRUE COLOR XXL WELDING MASK

LCD WELDING MASK ERGOTECH DREAM
Essential for safety, the ERGOTECH 5-9/9-13 optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from clear to dark state in a fraction of a second, from the moment the arc is struck. Supplied with a Multifit + headband, it frees the welder's hands and provides all the comfort needed for welding work.
This welding helmet features TRUE COLOR technology

UV/IR protection level: DIN 15
Clear shade: 3
Shade: adjustable from 5-9 and 9-13 13
Classification: 1/1/1/1
Field of view: 100 x 67 mm
Reaction time: 0.08 ms
Number of sensors: 4
Return to clear time 0.15>0.8 sec
Adjustments: sensitivity, shade tester, delay, grinding
Power supply: solar + 2 CR 2032 batteries
Weight: 560 g
Standards: EN 175 / EN 379


Applications
MMA: 5 to 400 A
TIG: 5 to 300 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Replacement lenses:
Outer lens 114 x 133 mm (ref. 043893)
Inner lens 103.7 x 69.5 mm (ref. 043695)

Launch offer at -50% on limited quantities (X50)

Automatic welding helmet EXTRA large screen
XXL viewing area: 100x97mm
External controls
Construction: PP
True Color technology: more realistic color rendering
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 1 replaceable CR2450 battery
Low battery alarm and test button
High sensitivity: 4 sensors
Fast darkening speed: 0.08 ms
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/1/1/1
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

Optrel automatic welding helmet, black color
Light shade 2.5
Auto shades 5-12
Manual shades: 8-12, 4-8
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Weight: 640g

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Not compatible with laser welding.

This auto-darkening welding helmet features 4 sensors with an integrated grinding screen with anti-fog coating
Operates with 2 CR 2450 lithium batteries. Equipped with a diode indicating the battery level.
Vision area: 75 x 108 mm.
Light/dark switching time: 0.000004 ms
Dark/light switching time: 10 positions from 0.1 to 1 second.
Sensitivity adjustment via digital button: 10 positions.
Adjustable shade from 9 to 13 for welding, from 5 to 8 for cutting.
Suitable for low-amperage TIG welding, microplasma, and oxy-acetylene welding

 Lincoln Electric's exclusive 4C technology liquid crystal display (LCD) increases the spectrum of visible colors. Unlike the traditional auto-darkening filter, 4C® technology broadens the range of visible colors and shades whether the light is diffuse or dark. It eliminates imperfections and color saturation, allowing you to clearly see the material being welded, the arc and the weld pool, while reducing eye fatigue.

3-year warranty.

Optical class 1/1/1/1
Weight 793 g

Supplied with:
5 outer protective lenses
2 inner protective lenses
1 sweatband
1 helmet cover
1 bandana
