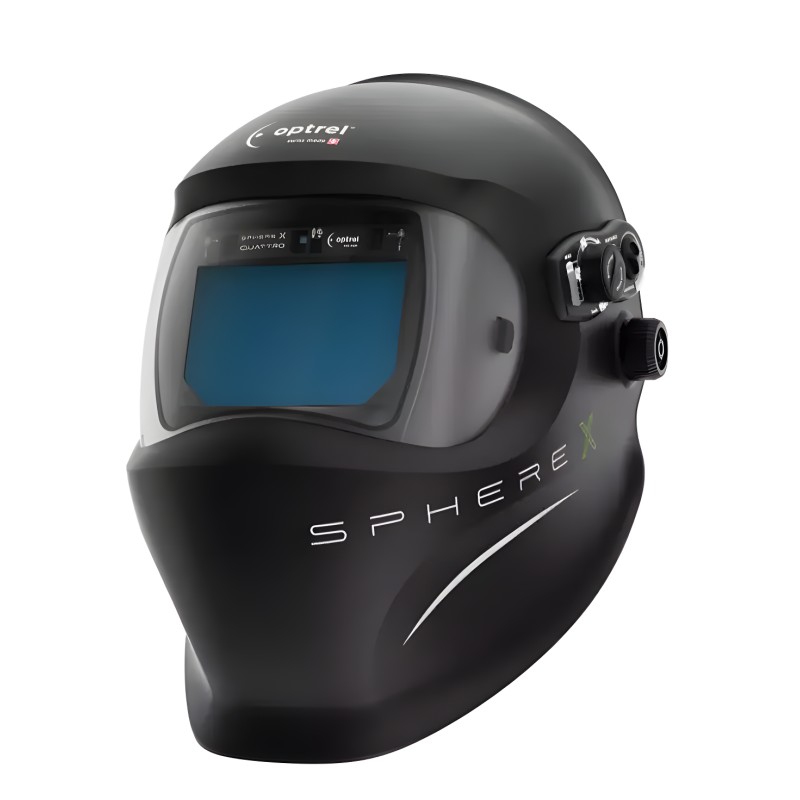

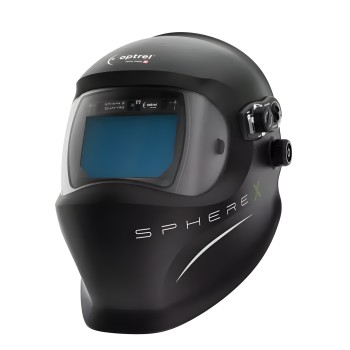

Optrel - Welding Helmet Sphere X Quattro black

Automatic welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable darkening (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc appears and quickly returns to its transparent state when it stops, eliminating the need to lift and lower the mask at each work break, allowing hands-free operation.
In addition to adjusting the filter sensitivity depending on the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XL viewing area 100 x 67 mm
- 4 sensors
- dark-to-light delay adjustment,
- battery and solar powered,
- transparent glass filter protection.
Optical class 1/1/1/2

S1040 welding helmet

Launch offer at -50% on limited quantities (X50)

Automatic welding helmet EXTRA large screen
XXL viewing area: 100x97mm
External controls
Construction: PP
True Color technology: more realistic color rendering
Fixed light shade: DIN3
Variable dark shade: DIN 4/5 - 9/9-13
Solar powered + 1 replaceable CR2450 battery
Low battery alarm and test button
High sensitivity: 4 sensors
Fast darkening speed: 0.08 ms
Return to light state from 0.1S to 1S
UV protection: DIN16
Optical class 1/1/1/1
Grinding mode
Weight 550 grams

Applications: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400
Standards: CE / EN 175B / EN 166 / EN 379

The Optrel Panoramaxx Quattro welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 350 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/1
Protection level (adjustable shade): 4-13
Light shade: 3 for grinding work.
Weight: 575 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

LCD WELDING MASK

Essential for safety, the GYSMATIC TRUE COLOR XXL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the tinted state in a fraction of a second, from the moment the arc is struck. Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 5 to 13 - True Color Technology
Classification: 1/1/1/1
Viewing area: 100 x 83 mm
Reaction time: 0.10 ms
Settings: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 680 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:

Outer lens 114 x 133 mm (reference 043893)
Inner lens 106 x 89.5 mm (reference 046825)

Welding helmet with powered air-purifying respiratory protection Protects eyes from IR/UV and the operator's respiratory tract Optimum field of view 75x112mm True-Color Technology - Optical class 1/1/1/1 Lithium battery life of approximately 8 hours - Charging time 1h 3 adjustable airflow rates to suit requirements (from 170 l/min to 230 l/min) 4 solar sensors for very high sensitivity and ultra-fast reaction time (0.08 ms) Fixed light shade: DIN 3 Variable dark shade DIN 9/12-13/15 Digital controls Grinding mode The filter is rated TH3 and retains 99.996% of welding particles Standards EN 166 / EN 175 / EN 379 / EN 12941 Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter Weight 5 kg

Variable shade adjustable from 8 to 13 depending on your eye sensitivity - Adjustment inside the mask.
Optical class: 1/1/1/1
Viewing area 97 x 60 mm
Grinding mode function DIN 3 - adjustment button on the outside of the helmet
Number of sensors: 4
Dark / light switching time: 0.1-1.0 second - fully adjustable
Weight 560 g
Possibility of adaptable magnifying lens
Minimum trigger amperage: less than 2 A in DC and AC/DC
Headband type: 4-axis pivot
Battery type: 2 x CR2050 + solar cell
True colour rendering device

replacement lenses:

internal: KP2931-1

external: KP2898-1

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

This Optrel HELIX CLT welding helmet with flip-up lens features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 23°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for very high clarity
Weight 640 g
Temperature resistance: Welding helmet 220° and protective screen up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective screen
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic Vision 11 TC welding helmet True-Color technology Matte black colour, easy to clean Fixed light shade: DIN 3 Fixed dark shade: DIN 11 Wide field of view: 90x35mm Solar power + Lithium battery Number of sensors: 2 Automatically switches from light to dark shade on arc strike Ultra fast: 0.6 milliseconds Return to light state from 0.2S to 0.8S UV protection: DIN16 Optical class 1/1/1/2 Weight 420 grams

Application fields: MMA 10-150 / TIG 10-175 / MIG-MAG 10-200 Standards: EN 175 / EN 379

Essential for safety, the PANORAMIC 3 XL optoelectronic welding helmet protects the welder's face and eyes from UV, infrared, and spatter. Fully automatic, the mask switches from clear to shaded state in a fraction of a second, from the moment the arc is struck. Delivered with a headband, it frees the welder's hands and provides all the comfort needed for welding work.

UV/IR protection level: DIN 15
Shade: adjustable from 4 to 12 - True Color Technology
Classification: 1/1/1/1
Viewing area: 131 x 84 mm + 2x (67 x 75 mm) – Panoramic vision
Reaction time: 0.15 ms
Adjustments: sensitivity, shade, delay, memory
Power supply: solar + 2 CR 2450 batteries
Weight: 610 g
Standards: EN 175 / EN 379

Applications
MMA: 5 to 400 A
TIG: 2 to 250 A
MIG/MAG: 5 to 400 A
Grinding mode (Grind)

Consumables:
Outer lens 385 x 150 mm (ref. 037311)
Panoramic inner lens (ref. 037304)

Launch offer at -50% on limited quantities (X50)

Automatic wide-screen welding helmet XL field of view: 100x60mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 1 replaceable CR2450 battery Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

Welding helmet suitable for arc welding:

MMA (stick electrode) from 5 to 400 A
MIG-MAG (semi-automatic welding) from 5 to 400 A
TIG from 5 to 300 A

Adjustable shade: DIN 5 to 13; setting 5 to 8 for flame welding and 9 to 13 for arc welding.
Solar powered + 2 CR2450 batteries
Automatically switches from light shade to dark shade upon arc strike in 0.2 ms
Weight: 560 grams.

Viewing field 100 x 67 mm
Number of sensors: 4
Adjustable headband
Grinding position (Grind): the lens remains clear during grinding and cutting work.

Optical classification: 1/1/1/2
Compliant with standards EN 175 / EN 379

Optrel automatic welding helmet, black color
Light shade 2.5
Auto shades 5-12
Manual shades: 8-12, 4-8
5 high-sensitivity sensors
Progressive auto-darkening filter
Dual-position locking
IsoFit X harness
Weight: 640g

Ideal for:
SMAW – Shielded Metal Arc Welding
MIG / MAG – Wire Arc Welding
High performance GMAW / flux-cored wire
TIG / GTAW / Plasma / Microplasma
Plasma cutting
Grinding work (grinding mode)

Not compatible with laser welding.

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Clear shade: 2 in grinding mode for maximum clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and cover lens up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 hard hat adapter
1 headband adjustable in width and length.
Storage bag
2 CR2032 batteries
1 spare outer cover lens
Warranty card.

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.
